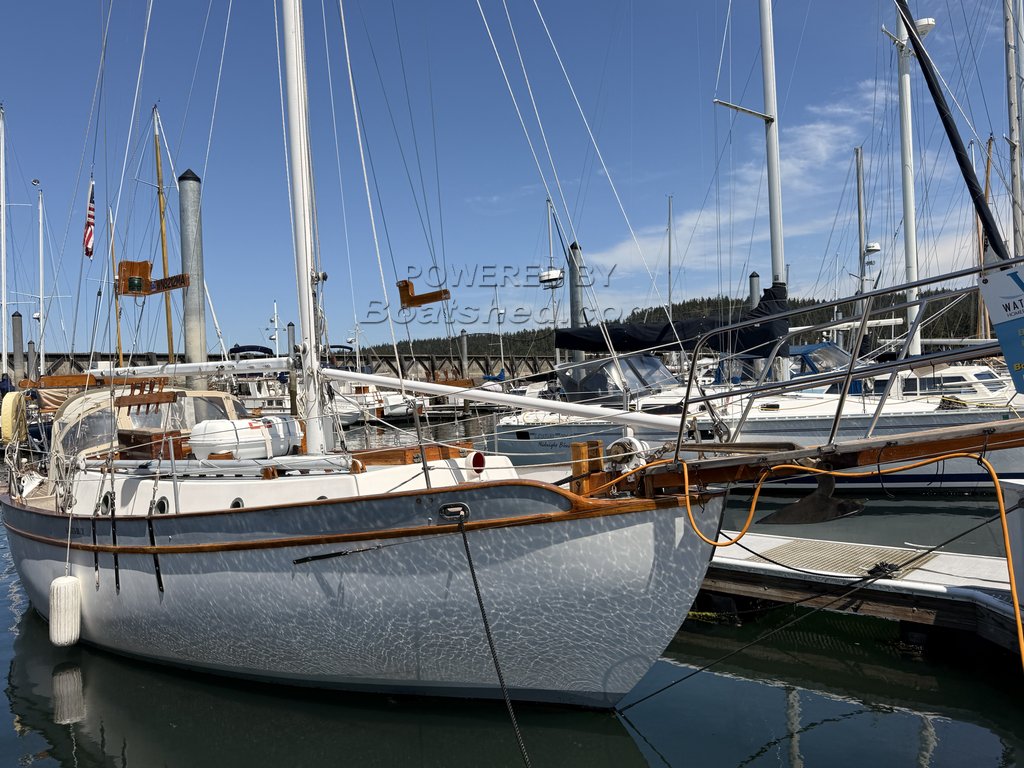

Westsail 32 Cutter
A Mighty Bluewater Sailer
- Boat REF# · 350272
- LOA · 9.75m
- Year · 1973
- Construction · GRP
- Underwater profile · Long keel
- Berths · 4
- Engine · 1 x Diesel 30hp, Volvo Penta MD 2030 (2010)
- Lying · Port Hadlock, WA USA -- Shown by Appt!
Extra Details
| Designer | Bill Crealock / Bill Atkin |
|---|---|
| Builder | Westsail Corporation |
| Lying | Port Hadlock, WA USA -- Shown by Appt! |
| Fuel capacity | 318.2 ltr (70.0 G) Total - 2 Tanks |
| Water capacity | 363.6 ltr (80.0 G) Total - 2 Tanks |
| Holding tank capacity | 81.8 ltr (18.0 G) Total - 1 Tanks |
| Last survey | 10/04/2026 |
Mechanical
| Engine | 1 x Diesel 30hp |
|---|---|
| Engine make and model | Volvo Penta MD 2030 (2010) |
| Engine Hours |
engine1= 1488 |
| Engine Cooled | Indirect |
| Steering | Tiller |
| Drive | Shaft |
| Prop(s) | 3 Blade Bronze |
| Fuel consumption (approx) | 1.5 ltr (0.3 G) /hour At Cruising Speed |
| Cruising speed (approx) | 5 knots |
| Max speed (approx) | 5.7 knots |
| Water-maker |
|---|
Repowered in 2010 with new Volvo Penta MD2030 Diesel Motor.
Speed of 5.7 -6 knots at 3150 RPM - Cruising speed of 5.0 -5.5 knots at 2200 RPM.
The engine compartment allows great access to engine compartment and all electrical and ancillary components.
Shaft driven with upgraded prop.
Prop is Trimmed and matched to compensate for displacement and steerage.
Spare Prop comes with sale.
3 new 12 volt lead acid batteries are located in dry boxes and can be accessed in the engine compartment.
Batteries are charged via engine alternator - Victron charger and inverter - as well as portable, flexible solar panel.
There is an 8 gph RO water maker installed that is in new condition. Access to filters and pump are in engine compartment. The control panel for water maker is accessed from cabinet in the galley.
Dimensions
| LOA | 9.75m |
|---|---|
| LOD | 9.75m |
| LWL | 8.38m |
| Beam | 3.35m |
| Draft Min | 1.52m |
| Draft Max | 1.52m |
| Airdraft | 15.24m |
| Displacement | 8,845kg (19,503.3lbs) |
| Headroom | 1.95m |
| Storage | On marina |
Rig
Cutter rigged LaFiell Aluminium spars (1973) with stainless steel standing rigging (1991)
Sails
| Mainsail | Velocity - Slab (1991) Fully Battened, 3 Reefs |
|---|---|
| Headsail | Catalina 110% - Hank on (2024) |
| Other sails | Staysail (1999) |
| Staysail (1973) | |
| Yankee x 2 (1973) | |
| Drifter 1.5 (1973) |
| Spinnaker gear |
|---|
Sails have not been stored on the boat. They are in dry, climate controlled storage and are claimed to be in very good to excellent condition.
The quiver of sails include:
-Full Spinnaker 1.5 Ounce with pole and car system at mast
-Headsail and inner are Tan Bark.
-Main is heavy Dacron.
Electrical Systems
12 volt battery, 110 shore power voltage, 3 batteries charged by: engine, solar panels, shore power Flexible Solar
Construction
| Construction | GRP |
|---|---|
| Underwater profile | Long keel |
| Finish | Gelcoat finish |
Length overall for moorage purposes is 40 ft.
This Westsail 32 is constructed of hand laid GRP. She is a full displacement, heavy, bluewater cruiser.
Stainless Fuel tanks have been upgraded from original with increased capacity. Access to transfer valves and tanks is in engine compartment.
Stainless water tanks have been replaced and offer increased capacity from stock. These are accessed below the saloon sole.
Holding tank is polyethylene.
Dimensions and capacities are not independently verified by Waterline Boats / Boatshed, and are reported from seller-supplied information and/or literature.
Accommodation
| Total # of berths | 4 |
|---|---|
| No. of double berths | 1 |
| No. of single berths | 2 |
| Cabin(s) | 1 |
| Handbasin | 2 |
| Shower | 1 |
| Heads | 1 heads (Manual) |
Moving around the cockpit well, you will find easy access to all the helm controls including the engine gauges which are well isolated from weather and sea state. The cockpit does offer space to relax while in shelter behind the large and sturdy dodger.
The companionway into the main cabin is spacious and allows easy access below with hand holds and brace points for easily descending below. The cabin is very nice and surprisingly large. All joinery and trim work is in exceptional condition.
The Navigation station to starboard of the companionway is massive and has space to layout charts, monitor the navigation electronics, or do log entries.
Her cabin layout is very well thought out and offers abundant space for storage. The galley to port, offers a large surface area with fiddled edges. Perfect for meal prep in any seaway.
Moving forward is a large comfortable saloon with booth and table seating to port and pull out bench / berthing to starboard. This is all surrounded by storage options in the form of cabinets and drawers.
The head is forward and port with a folding bulkhead to expand the space for showering or changing. This compartment continues forward into a standalone V/quarter berth.
The headlining throughout the vessel could use some cleaning, however, the headlining material is in great condition with no sight of sags or delamination.
Diesel Heating / Cessna
2 burner gas cooker/stove
Accommodation
| Cooker/stove | |
|---|---|
| Oven | |
| Sink | |
| Refrigerator | |
| Cabin heating | |
| Pressurised water system | |
| Raw water wash | |
| Non-Smokers |
Moving around the cockpit well, you will find easy access to all the helm controls including the engine gauges which are well isolated from weather and sea state. The cockpit does offer space to relax while in shelter behind the large and sturdy dodger.
The companionway into the main cabin is spacious and allows easy access below with hand holds and brace points for easily descending below. The cabin is very nice and surprisingly large. All joinery and trim work is in exceptional condition.
The Navigation station to starboard of the companionway is massive and has space to layout charts, monitor the navigation electronics, or do log entries.
Her cabin layout is very well thought out and offers abundant space for storage. The galley to port, offers a large surface area with fiddled edges. Perfect for meal prep in any seaway.
Moving forward is a large comfortable saloon with booth and table seating to port and pull out bench / berthing to starboard. This is all surrounded by storage options in the form of cabinets and drawers.
The head is forward and port with a folding bulkhead to expand the space for showering or changing. This compartment continues forward into a standalone V/quarter berth.
The headlining throughout the vessel could use some cleaning, however, the headlining material is in great condition with no sight of sags or delamination.
Diesel Heating / Cessna
2 burner gas cooker/stove
Deck Gear
| Sail cover | |
|---|---|
| Sprayhood | |
| Spray dodgers | |
| Fenders | |
| Instrument Covers |
3 halyard winches
2 sheet winches
Manual Simpson - Lawrence Hypspeed 510 windlass
2 anchors
(1 X 45# CQR - 1 X 20# Danforth)
60.96m of chain
67.06m of warp
Aries windvane self-steering system
West Marine dinghy (2016)
(Inflatable)
All halyard winches located on mast with sheet winches in cockpit.
45# main Main with 200' Chain - 150' Nylon
20# Secondary with 40' Chain - 350' 3/4" Nylon
Nav Equipment
| Compass | |
|---|---|
| Speed | |
| Radar | |
| VHF | |
| VHF DSC radio | |
| SSB | |
| GPS | |
| Chart plotter | |
| Autopilot | |
| Weather fax | |
| Clock | |
| Barometer | |
| Navigation lights | |
| AIS Receiver | |
| Echo sounder | |
| Radar Reflector |
All electronics are 100% functional and are in very good to excellent condition. They are dated however, and may be upgraded at buyers discretion.
-EPIRB will need to be re-registered but is in like new condition
-2 Garmin GPS / Chartplotters located in the Nav Station
-Auto Helm / Rudder control is located in Nav Station
-Aries Windvane Steering w/ all components is affixed at stern.
Safety Equipment
| LPG Detector | |
|---|---|
| Liferaft | |
| Life jackets | |
| Life buoys | |
| EPIRB 406MHz | |
| MOB System | |
| Emergency steering |
2 bilge pumps (1 manual / 1 Electric)
Whale Gusher Pump
Atwood Auto On/Off
There are 3 ABC fire extinguishers placed and accessed aft to forward at main ingress and egress points.
Toys
There is a lightly used West Marine inflatable dinghy included with sale. It has been stored indoors and comes with oars only.
Broker's Comments
A rare find indeed!!
If you are in the market for a very well preserved, heavy displacement, blue water sailboat, that won't be parked in the boatyard for years, while replacing and repairing overdue maintenance and damage due to neglect, look no further than this Westsail 32.
These heavy displacement blue water cruisers are revered for their safety, and ability to maintain themselves in the worst sea state. This West Sail 32 is particularly sound and no doubt would be perfect for a solo sailor, or couple.
During his ownership of over 35 years, the seller has clearly maintained and preserved every corner of this legendary vessel. The teak decking is less than 3 years old, as is the bow sprit. All bright work has been maintained and appears to have been recently re-finished. Other than some light oxidation and fading of gelcoat in places, she is in remarkable condition inside and out.
Vessel was re-powered in 2010 and includes a water maker.
These boat details are subject to contract.
Note: Offers on the asking price may be considered.
LOA includes all overhangs fore to aft and are considered for docking and marina qualifications.
